Material Handling & Lifting Equipment

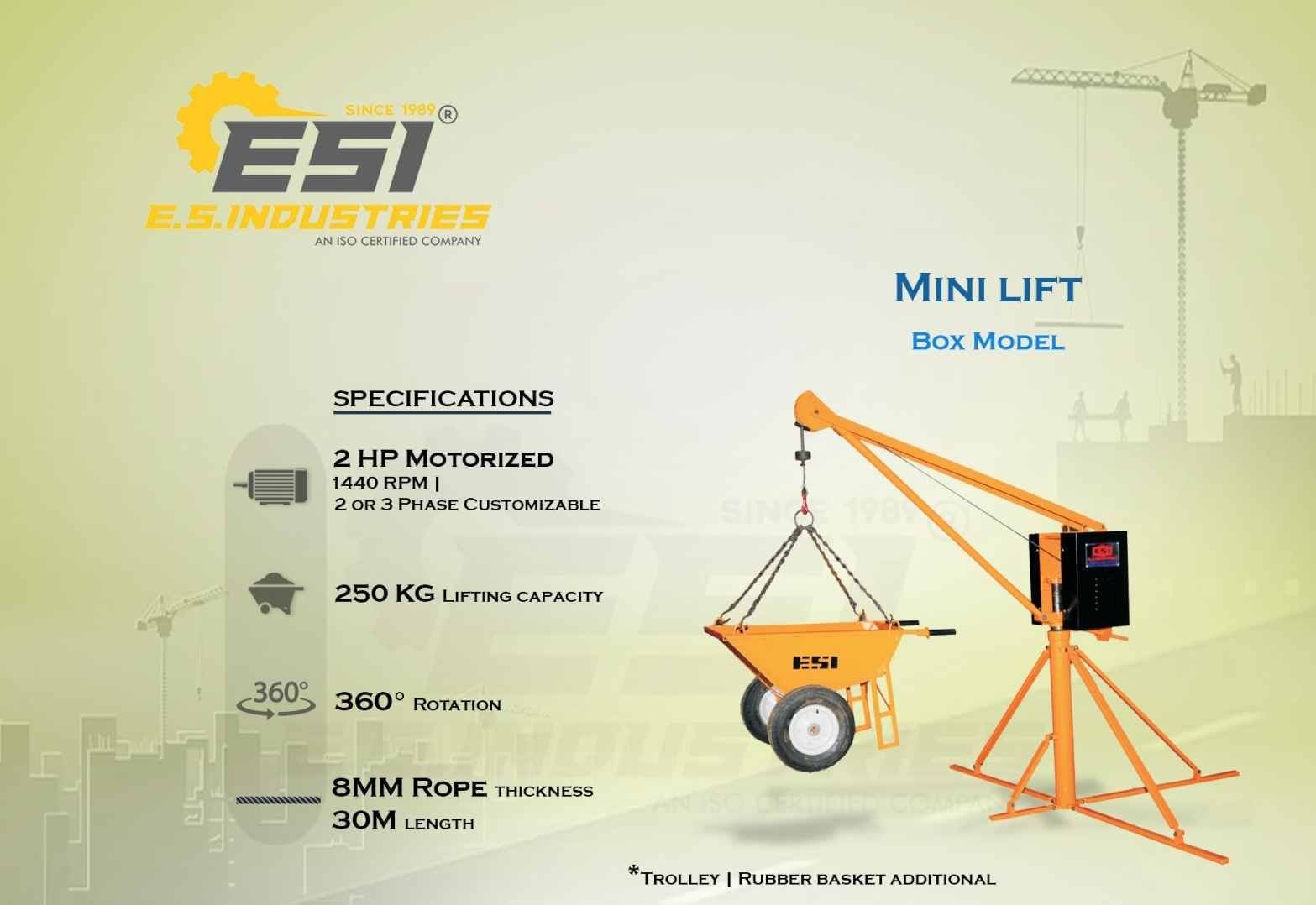

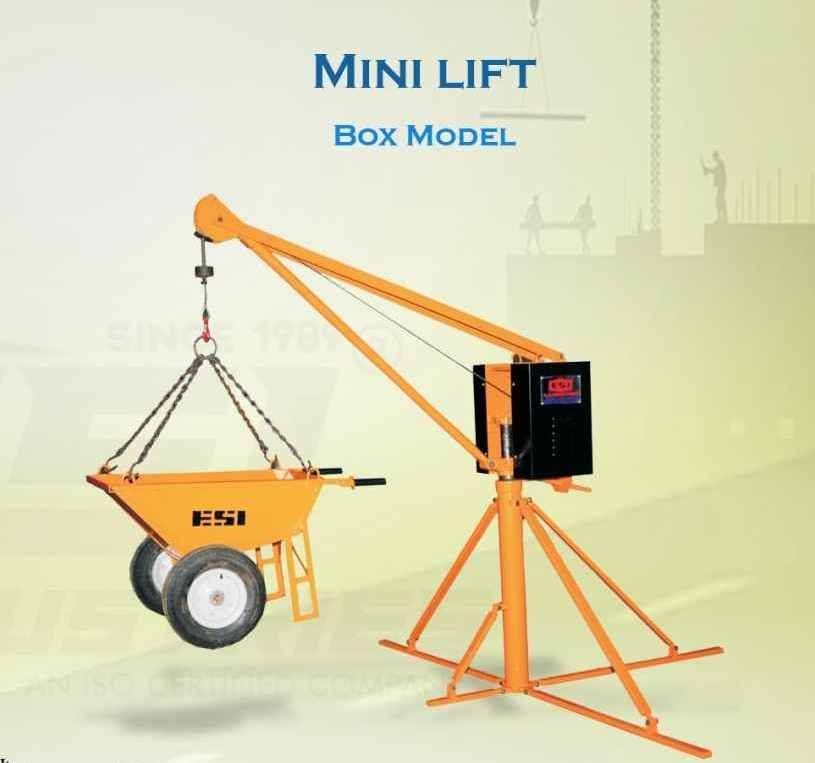

Mini Lift Box Type

Minilifts are used at construction sites to lift raw materials like brick, sand, cement from ground floor to upper floors by using rope system crane are easily shift able and maintenance free reduce labour wages, easily assembled and operated by any user special feature is about 360 degree full rotation.

Lift Specifications Key Feature

Model : Mini lift Box Type

Lifting Capacity : 250kgs

Power Type And Brand : ESI / Motor

Power Capacity : 2 HP / 1 or 2 Phase

Break : No

Rope : 8 mm Customizable

Gear Box : Yes

Rotation:360Degrees

Portability: Easy

Medium Scaffolding pipe : No

Wheels : No

Sizes And Dimensions

Machine Dimension: W7′ H6′

Machine Weight: ~200Kgs

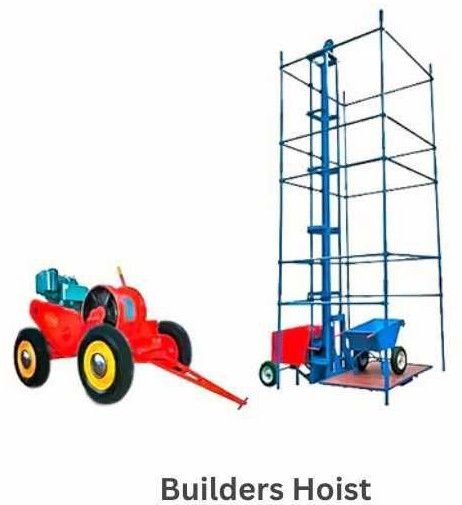

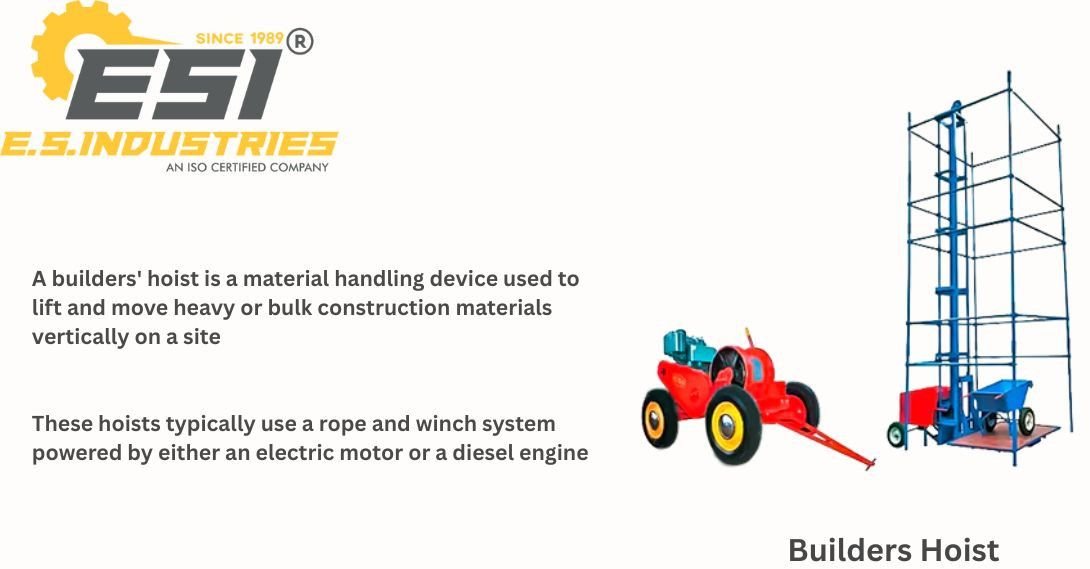

Builders Hoist

Our ideal machine is made of IS TATA/VIZAG steel structure their less maintenance. We guarantee the high practical work productivity. lift concrete, cement, sand, bricks types, tiles, steel bars and other building materials. It is widely used in high rise building foundations projects, chemical factories, dams, bridges, wells and other civil works.

Specifications Key Feature

Model : Builder Hoist Half ton and 1 Ton

Lifting Capacity : Half Ton And  1 Ton

Power Type : Motor or Engine

Power Brand Using : Kirloskar,  HTC or Crompton Grease, Kirloskar Electric Motor  Customizable

Power Capacity : 10 or 12 HP Air Cooled Diesel Engine || 7.5 or 10 HP Motor

Break : No

Rope : 12mm to 14 mm Customizable

Portability: Hard

Medium Scaffolding pipe : yes

Wheels : 4 Wheel

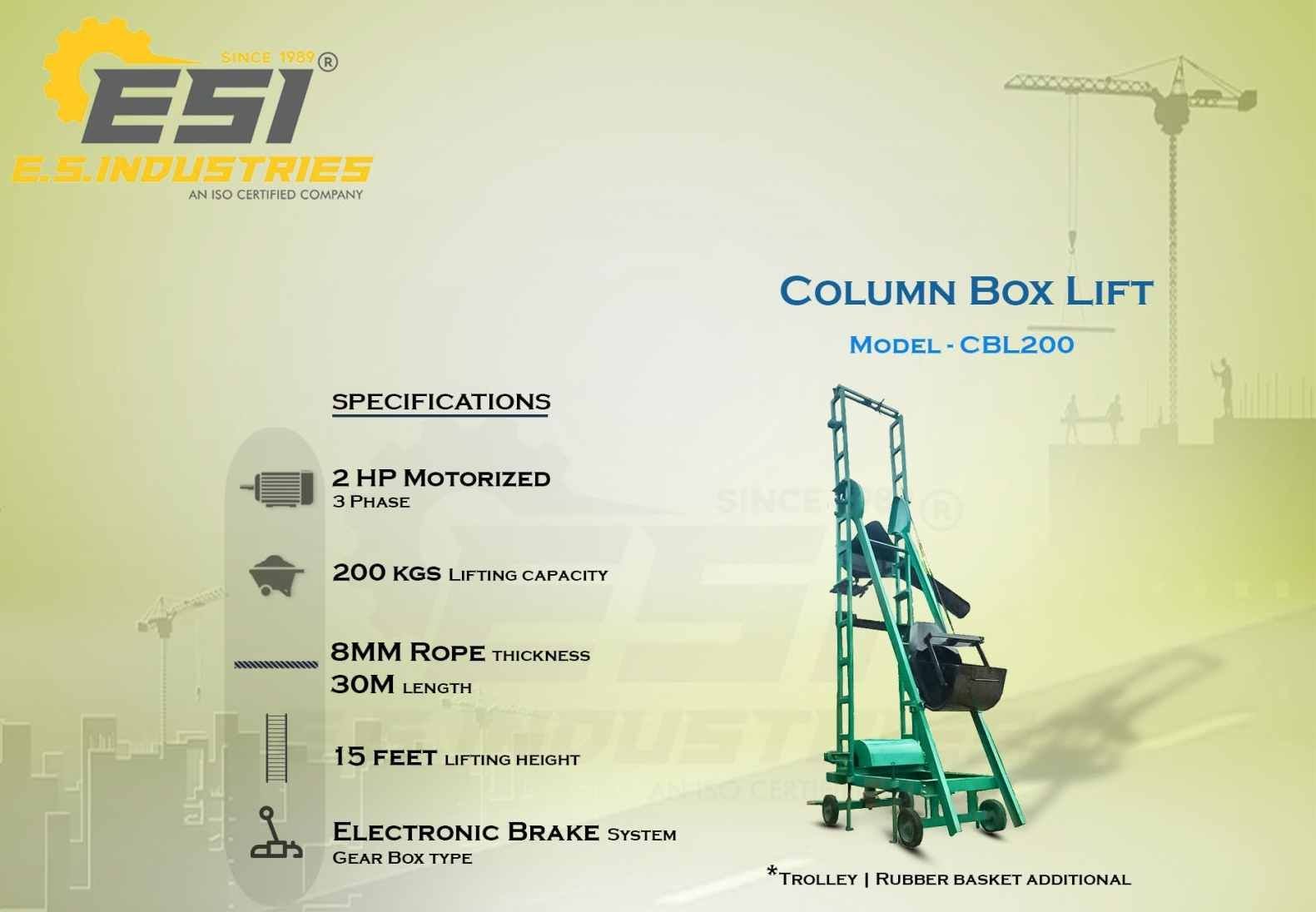

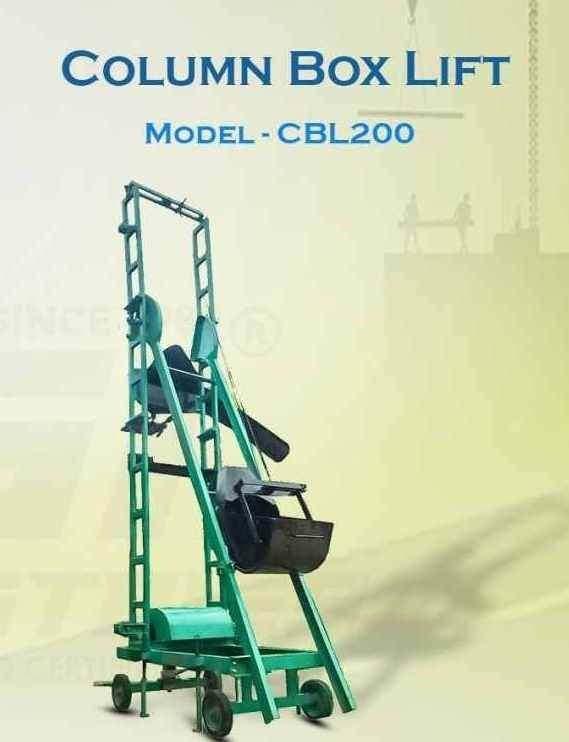

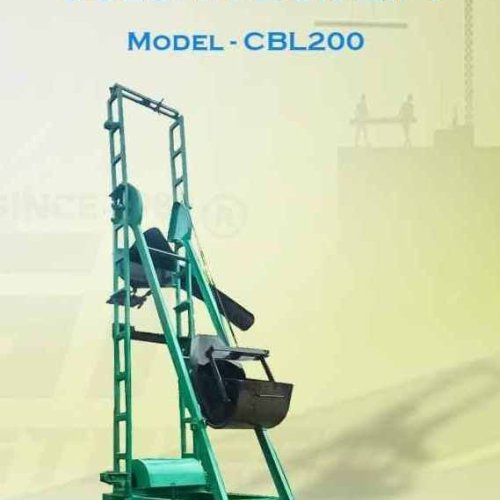

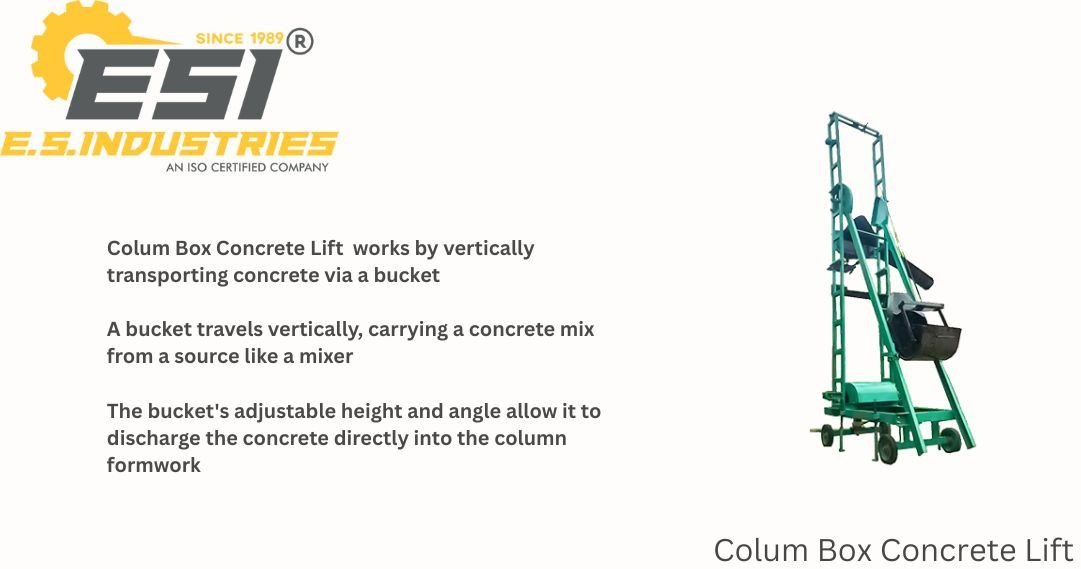

Column Box Concrete Lift

Our specialized column box concrete lift is used in industrial and commercial applications. In building construction while making concrete column formworks. Our machine provides the bucket which travels vertically and directly caries concrete mixture produced by any batching drum mixer or material collected from any lifts. The height and angle of the discharge chute can be adjusted so that it discharges concrete directly intort the column formworks. They are easily assembled and dismantled. Remote control operation. Easily portable with solid rubber wheels Carries with a capacity of 200kgs and a lifting height of 11 feet. It is powered by a three-phase motor and specially designed gear box. Specialized design with remote panel makes to perform effectively. Reduce work time and labour costs and increase productivity.

Lift Specifications Key Feature

Model : Column Box

Lifting Capacity : 200kgs

Power Type And Brand :  Motor

Power Capacity : 2 HP / 3 Phase Motor

Break : No

Rope : 8 mm Thickness / 30m Length Customizable

Portability: Medium

Medium Scaffolding pipe : No

Wheels : 4 Nos

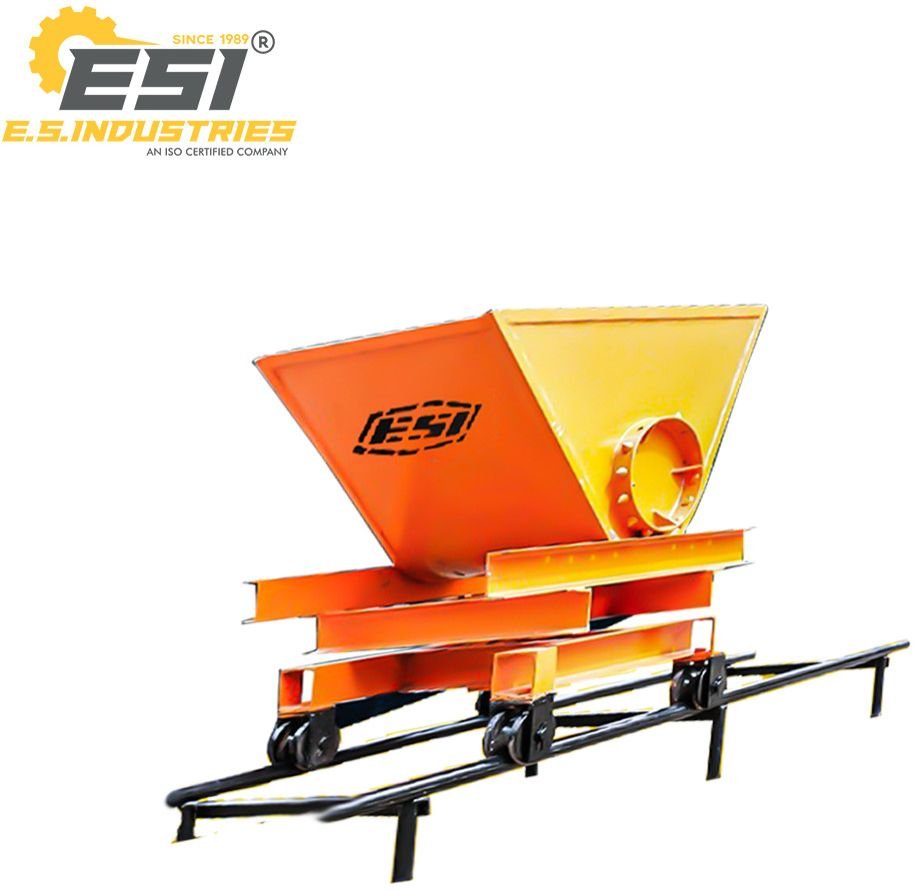

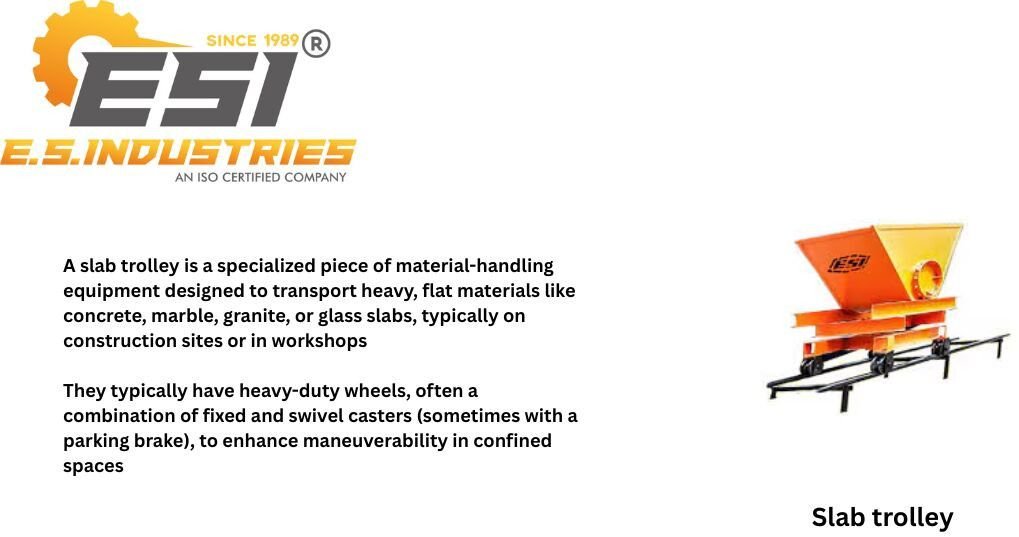

Slab Trolley

For Easy Material Discharge, Swivels In 360 Degree Around its Axis and Can Be Tilted At 90 Degree From Both Side. Moving Frames and bucket are made of superior quality raw materials for user convenience and durability. Owing to their roller wheels, trolley buckets are able to shift varied kinds of construction materials in a very speedy manner. Light Weight Nylon Wheels which are resistant to impact, corrosion, abrasion and to the effect of many chemicals. Rails are made of IS material B class steel pipe.

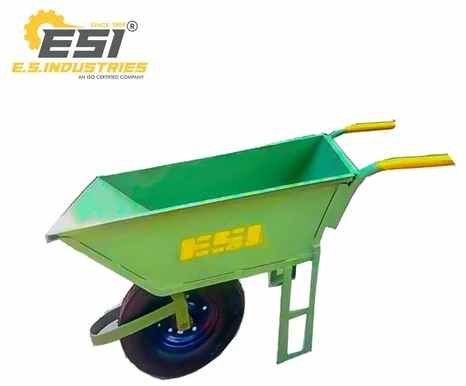

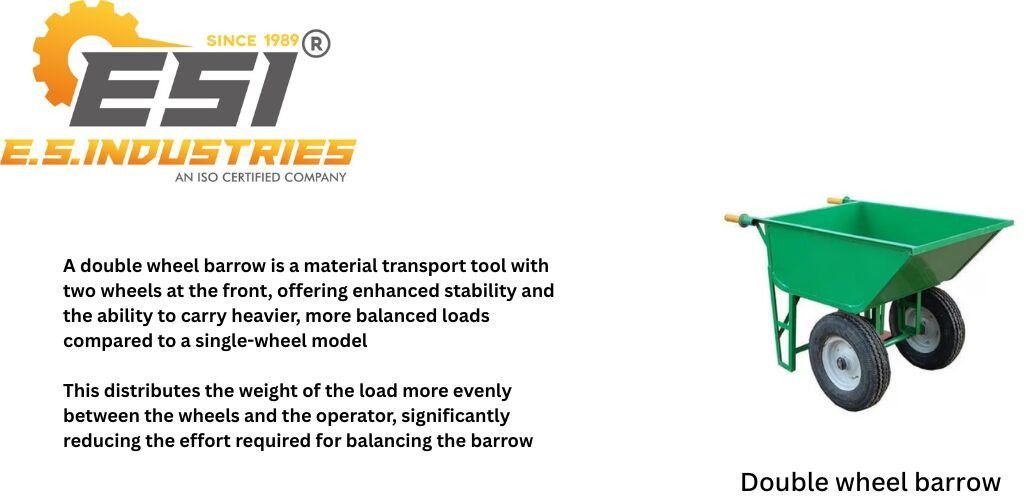

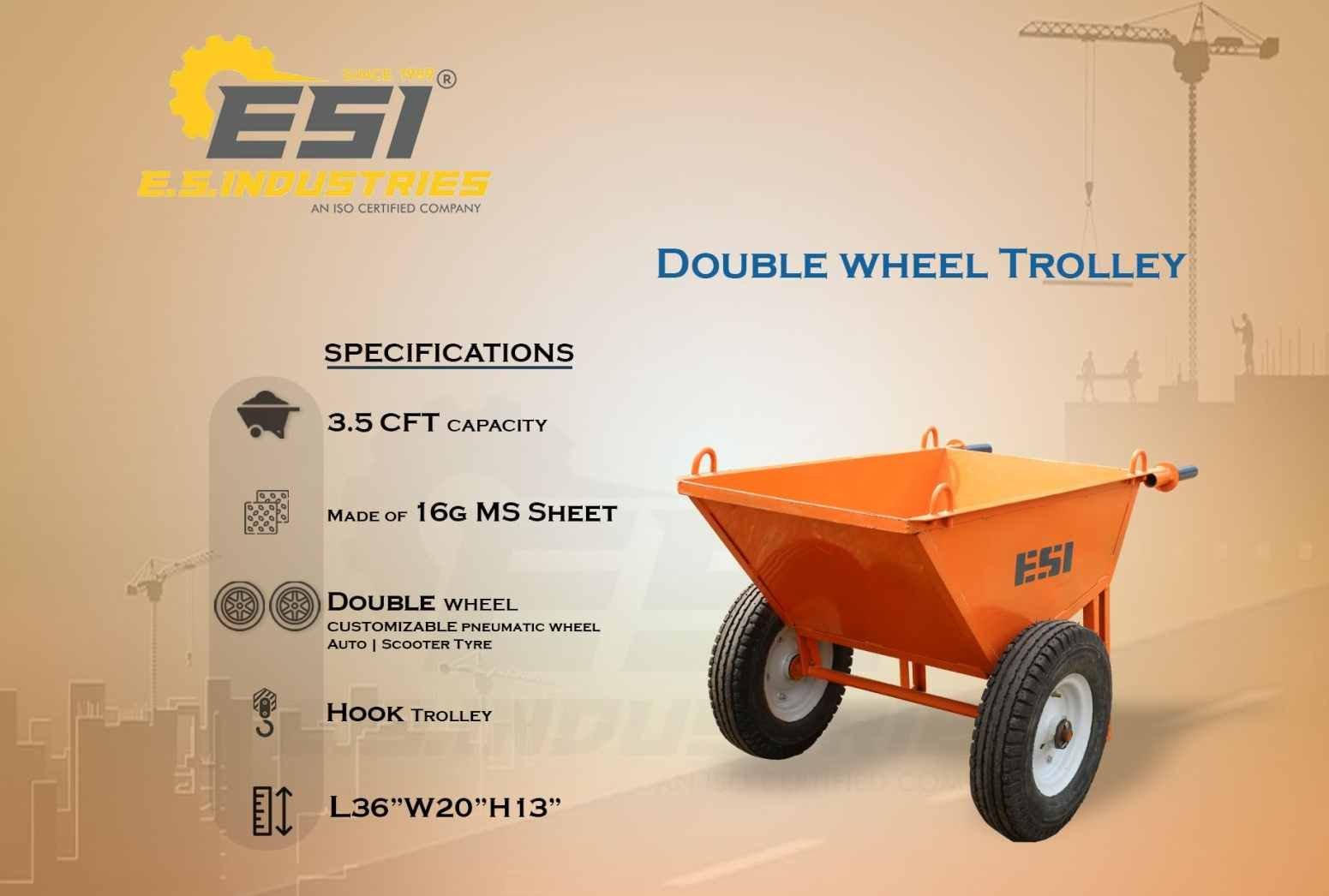

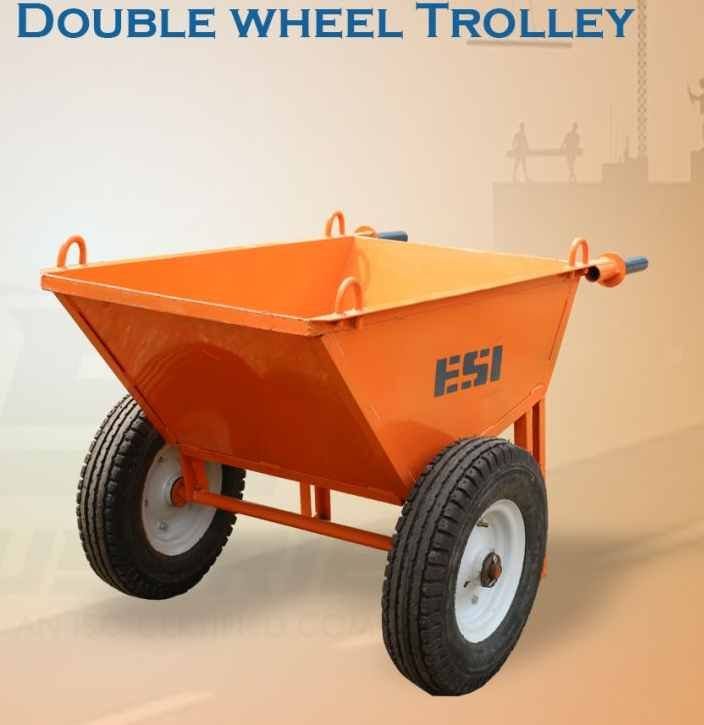

3.5Cft Double Wheel Barrow (HOOK)

A wheelbarrow is a small hand-propelled vehicle, , designed to be pushed and guided by a single person using two handles at the rear, or by a sail to push the ancient wheelbarrow by wind.

The wheelbarrow is designed to distribute the weight of its load between the wheel and the operator, so enabling the convenient carriage of heavier and bulkier loads than would be possible were the weight carried entirely by the operator. As such it is a second-class lever. Traditional Chinese wheelbarrows, however, had a central wheel supporting the whole load. Use of wheelbarrows is common in the construction industry and in gardening. Typical capacity is approximately 100 litres (3.53 cubic feet) of material.

A two-wheel type is more stable on level ground, while the almost universal one-wheel type has better maneuverability in small spaces, on planks, in water, or when tilted ground would throw the load off balance. The use of one wheel also permits greater control of the deposition of the load upon emptying.

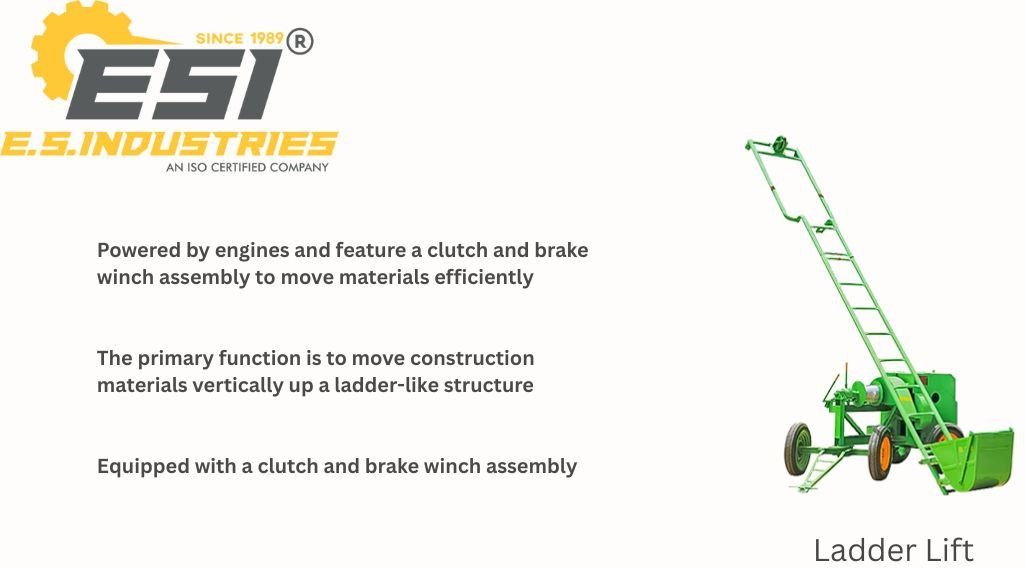

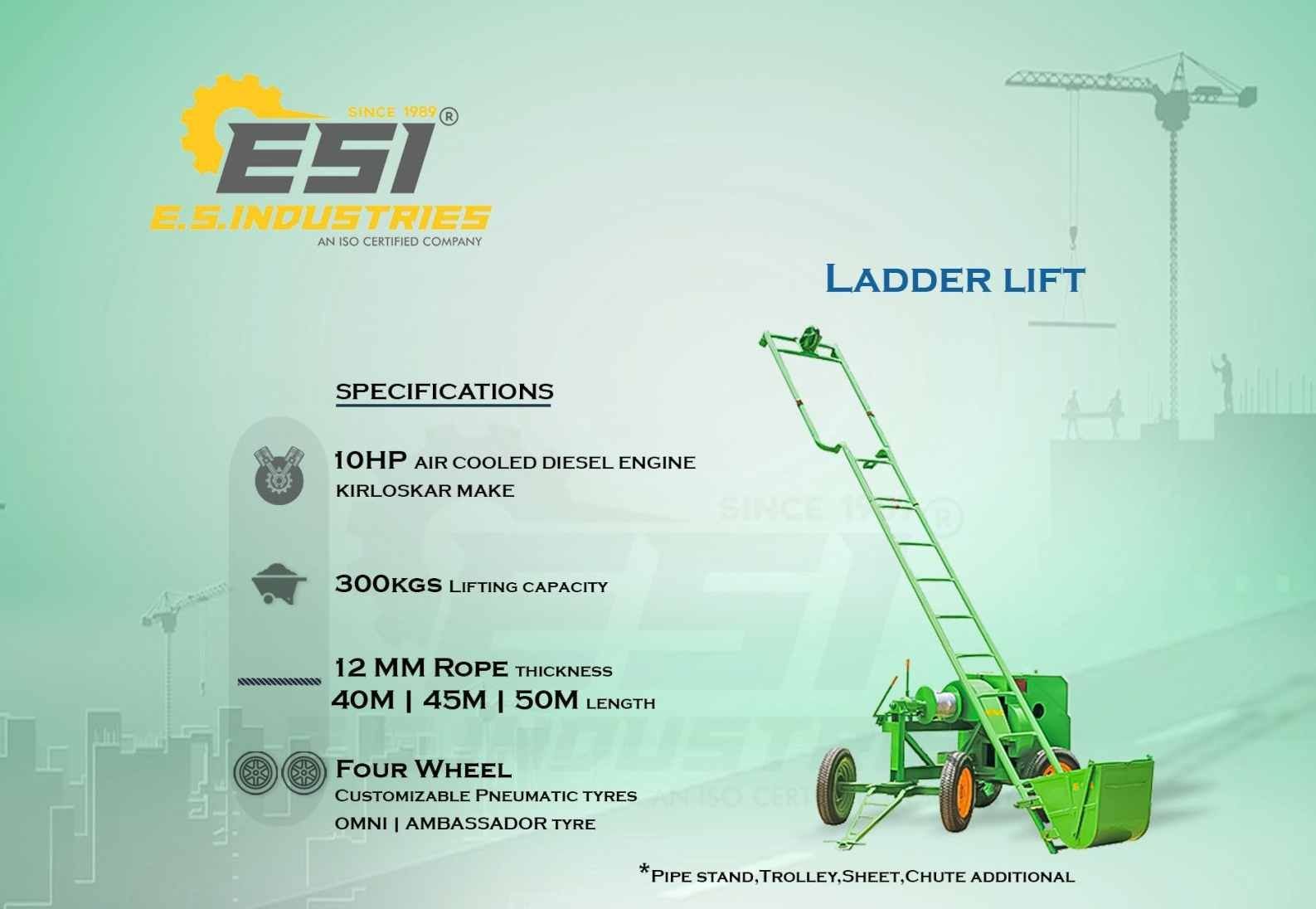

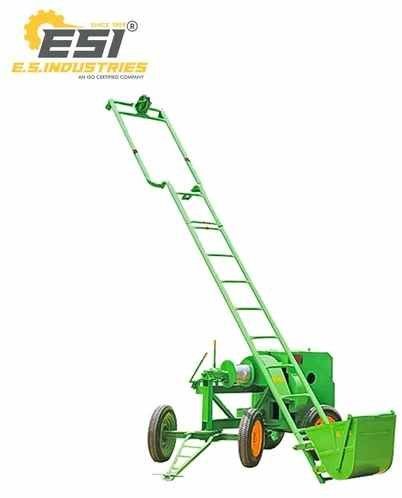

Ladder Lift

Perform effectively with commendable process and mechanical operation. Equipped with pipes and bucket with clutch and brake winch assembly. It simplifies the process of loading and unloading concrete, thereby reducing man labour. Continues operation enable work productivity more and reliable solution for builders for enhancing overall work efficiency. Ladder type lift are used for conveying concrete from ground floor to any upper floor roof top easily by rope clutch and bucket system, reduce labour wages and quick job done at construction site.

Ladder Lift Specifications Key Feature

Model: Ladder

Lifting Capacity: 300kgs

Power Type And Brand:  Engine / Kirloskar

Power Capacity: 10 HP Air Cooler Engine

Break: No

Rope: 12mm Thickness / 40m | 45m | 50m  Length Customizable

Portability: Hard

Medium Scaffolding pipe: No

Wheels: 4 Nos

Sizes And Dimensions

Machine Dimension: L7′ W50″ H5.5″

Machine Weight: ~ 1 Ton

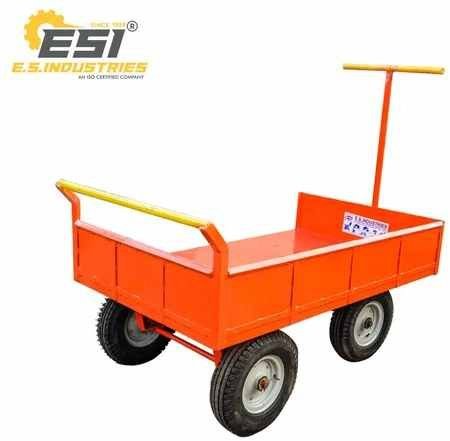

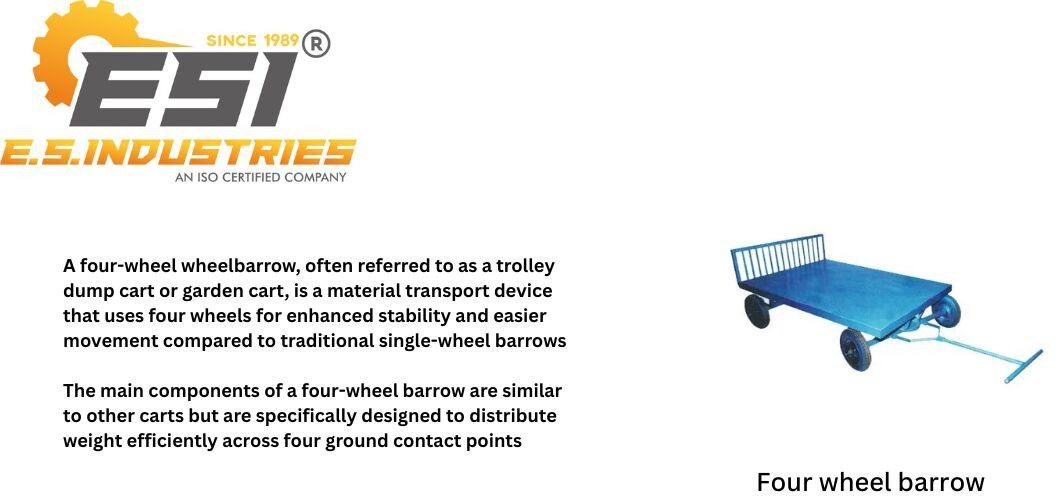

Platform Trolley Open

Crude Materials are transported from one plate to other with simple operation, Facilitate workload.  More beneficiary.

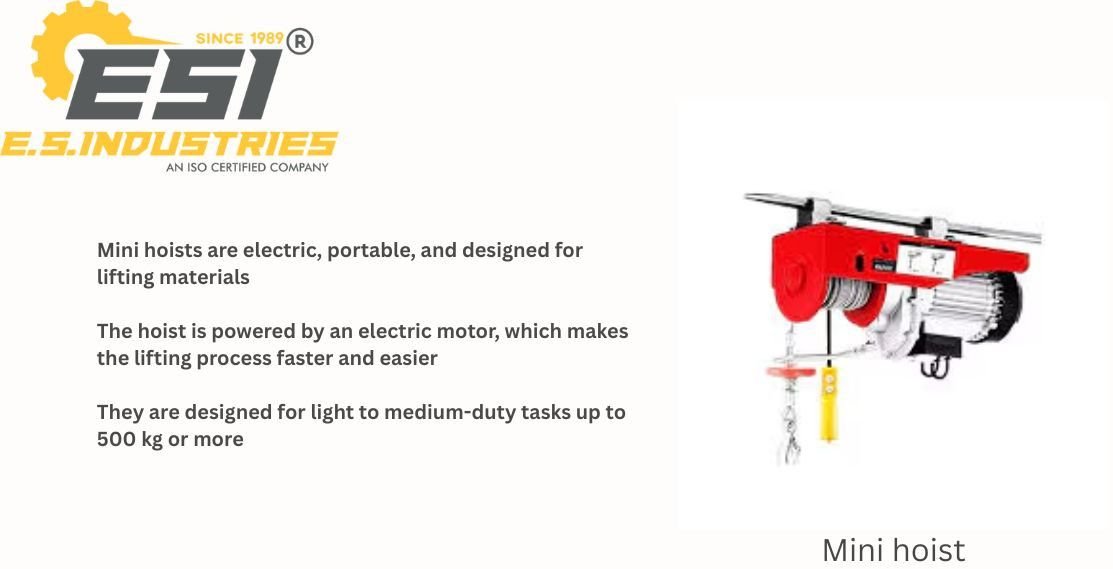

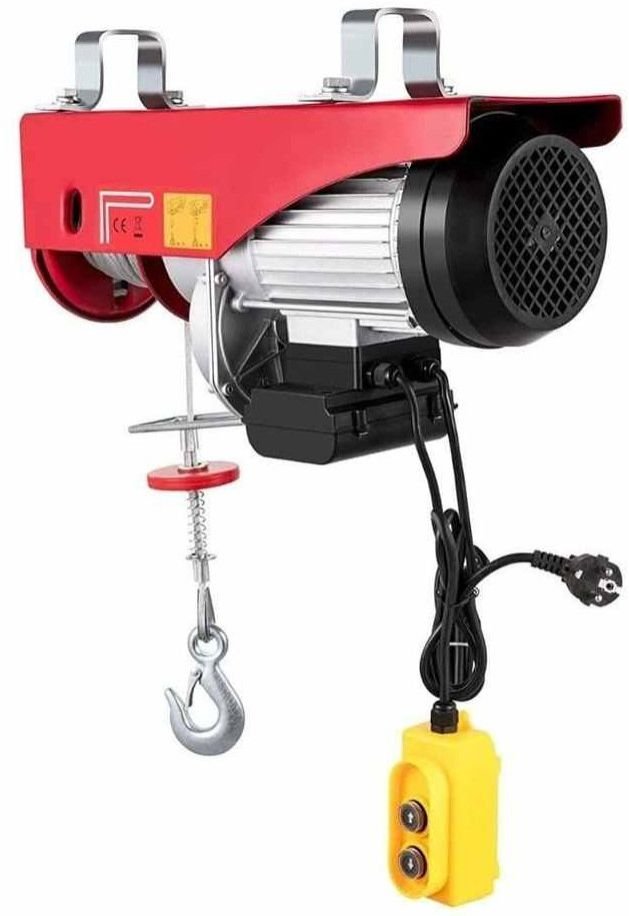

Mini Hoist

its quality, and is extensively used in construction a. Designed with our highly professional engineers, maintaining internationals standards of quality.

Specifications

Lifting Capacity : 500kgs

Power Type And Brand :  Motor

Power Capacity : 2HP Motor

Lifting Speed: 10m/min

Break : No

Rope : 6mm Thickness / 12m  Length

Portability: Easy
