Concrete Equipment

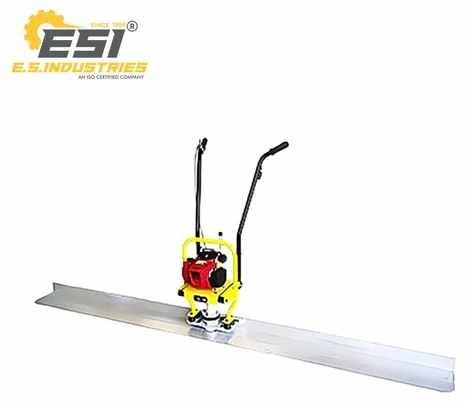

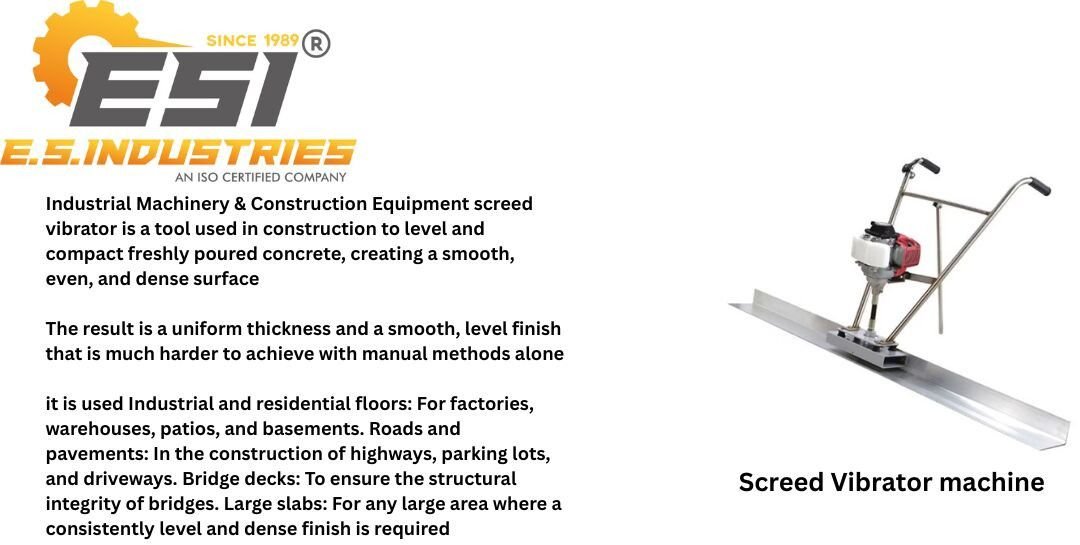

Screed Vibrator Aluminum Blade

Versatile surface vibrator is designed to improve the concrete surface level flatness with exact tolerance .Powered by gasoline engines with blade length 2m ,3m,4m. small vibrator placed on a screw board offers an efficient method to compact and level the skinny concrete members such as ground slabs, roof slabs and street surfaces. Mostly, floor and ceiling slabs are so thin that a needle or any other vibrator cannot be used easily. In such cases, surface vibrators can be used effectively.
Used for concrete slabs of bridges, concrete roads & pavements are port runway, industrial floorings etc. stickling and vibrating finish together. Porter can adjust impact force and vibration frequency by manually at any period. Aluminum alloy blade is more durable and light weight. Blades assembled with bolts for easy assembling. Our handle designed in such a way to move the screed machine easily.

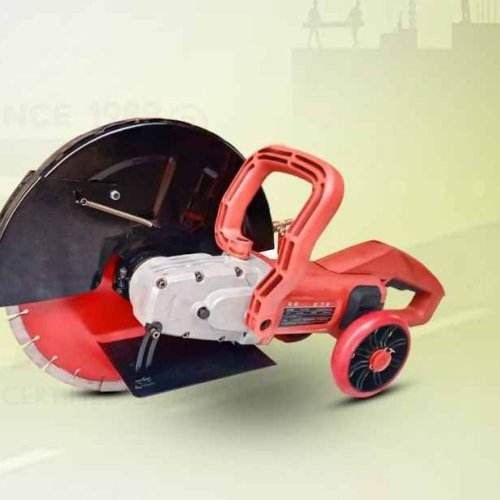

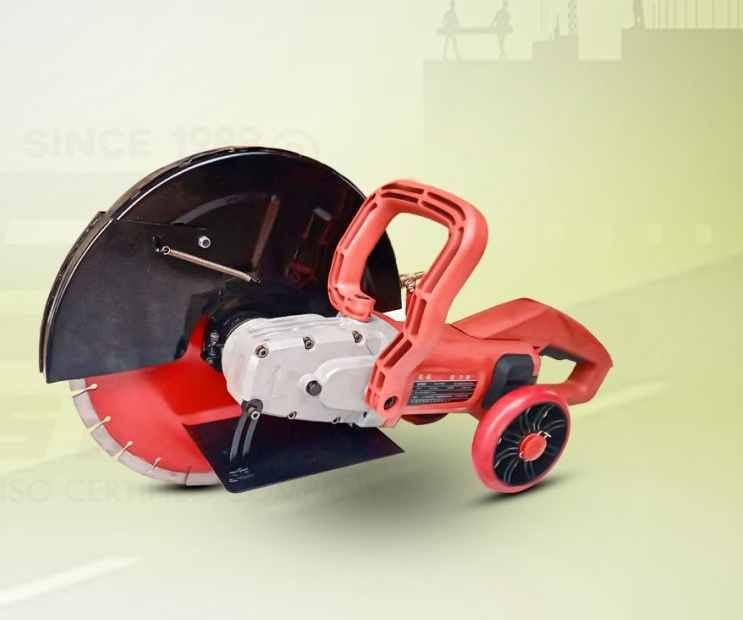

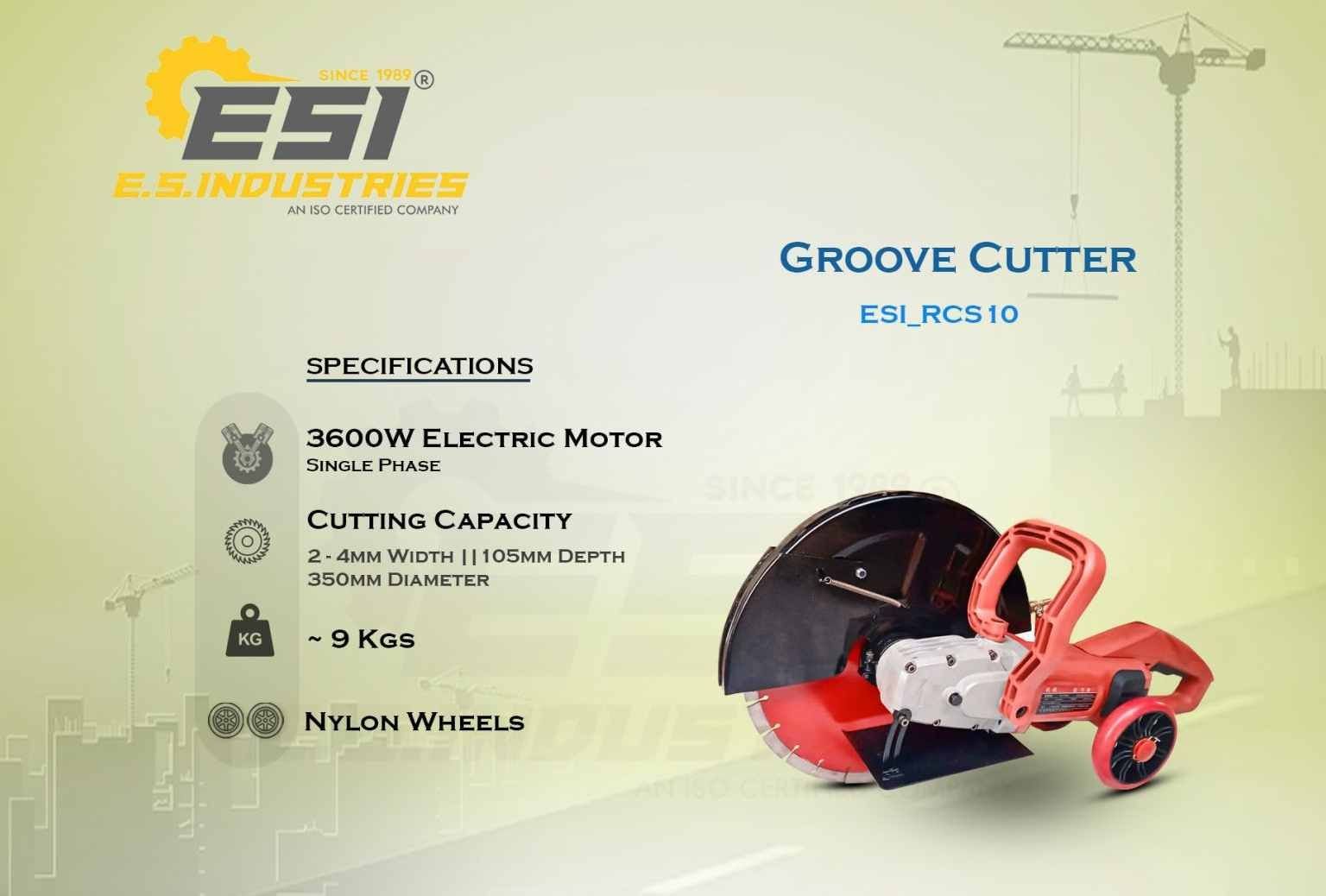

Concrete Floor Cutter

Concrete cutting is an everyday need on construction projects, it is the process of controlled sawing, drilling, and removing smashed concrete for remodeling and building work. Providing for energy saving performance, the equipment comes with option of electric motor and diesel engine support so as to deliver consistent work performance. It enables operator to handle easy, maintenance free, compact designed, suitable for cutting different concrete layouts; The main purpose to cut grooves in RCC roads. water spray attachment & adjustable line pointer to guide the operator. Water tank designed for perfect waling effect .Laser welded diamond saw blade ranges 350mm,400mm,500mm over cutting depth adjustable to 180mm.Quick cutting and accurate cutting sections can be done. Blade cover id designed to fix with frames screw bolts for easy handling. Smooth cutting and directional stability is achieved due to the optimum position of the machines center of gravity.

Efficient and economic cutting blade drive: Long service life and low maintenance costs due to heavy duty belt tightener. Large integrated, removable water tank with over-size fill opening and adjustable sprinkling system and large capacity.

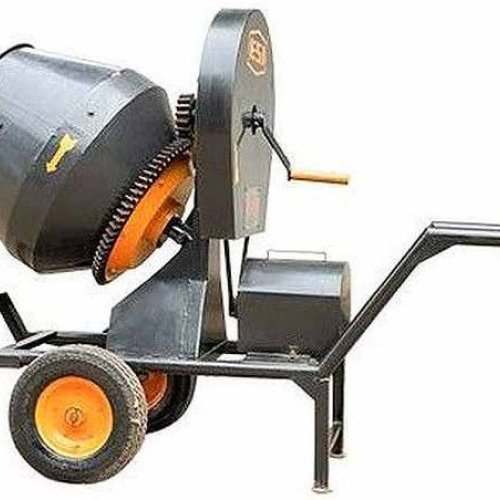

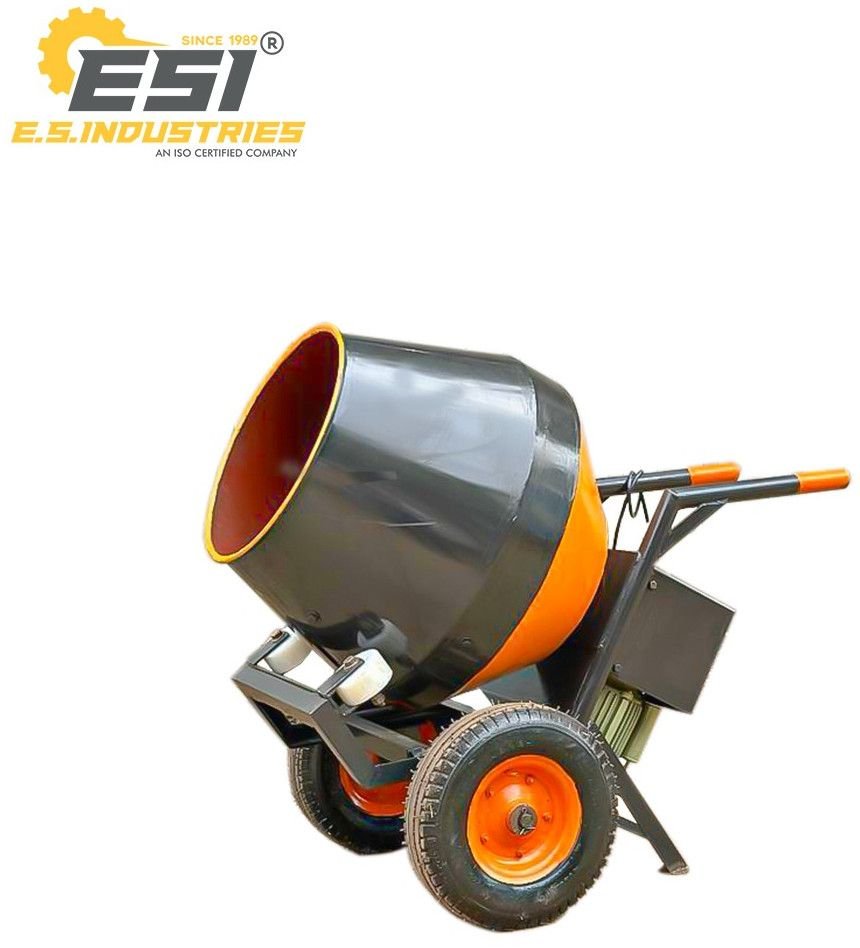

Dual Mixer

Dual mixer is a portable concrete mixer used in mini construction works for making concrete. Mini dual concrete mixer is designed with operation purpose both manual and electric motor as it is belt driven system.

Key Feature

Capacity : 3.5/2.5 CFT [100/75 liters ]
Power Type: Motor / Manual
Power Capacity: 1.5 HP
Blade Count: 2
Steering Type: Tilting Bar
Material: MS
Hopper : No
Hopper Type: Nil
Weigh Batcher: No
Wheel Count: 2
Tire Material: Auto or Scooty Tire
Tow Bar: No
Portability: Easy

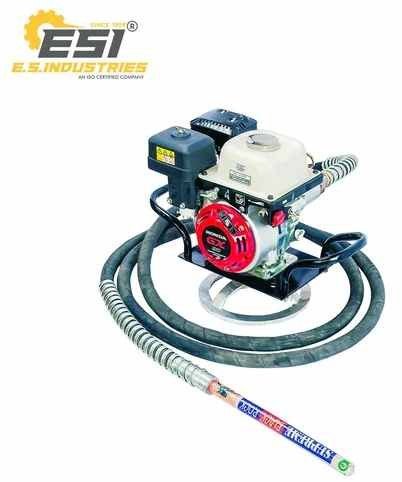

Gasoline Concrete Vibrator

Vibrators are made of conceal springs provided with revolving base frame stand. Electrical operation model Provides high quality motor to start up compaction immediately and fuel consumption reduced. Honda vibrator 1.5hp Petrol/Kerosene Vibrator fitted on a Rotate base stand. Automatic off when oil on Low level. Recoil type start. ESI concrete vibrators are used for construction purpose in civil projects. vibrators are used to retain long term durability and stability of concrete before settling period. wet concrete basically have cavities, air bubbles, pores like honey combs which jeopardize concrete efficiency.so vibrators are used to settle the concrete mixture evenly.by applying vibrator force, bubbles gets released out and concrete attains its even slab level if compaction done properly.

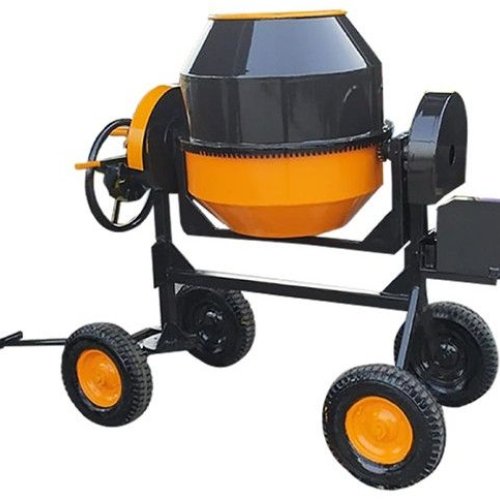

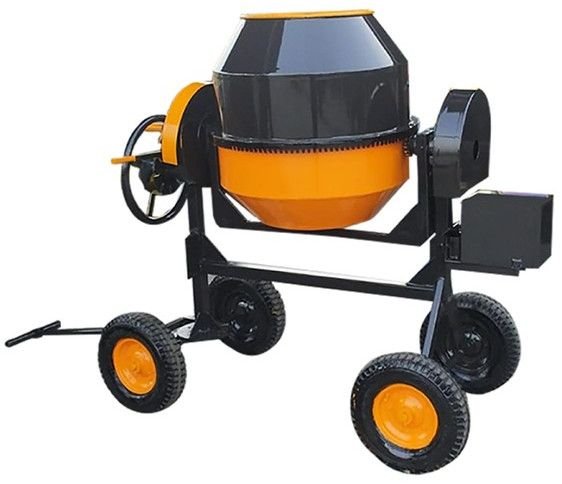

Heavy Duty Cement Mixer

Cement or concrete mixer operated with electric motor or fuel engine with easily tilting model steering type. They are easy portable, convenient for mixing mortar, any dry seeds and so on

Specifications

Capacity : 200 Liters

Motor : 2 HP Motor

Steering : Chain | for tilting drum unit

Wheel: 2

Wheel material : Auto or Scooty tire

Portability : Easy

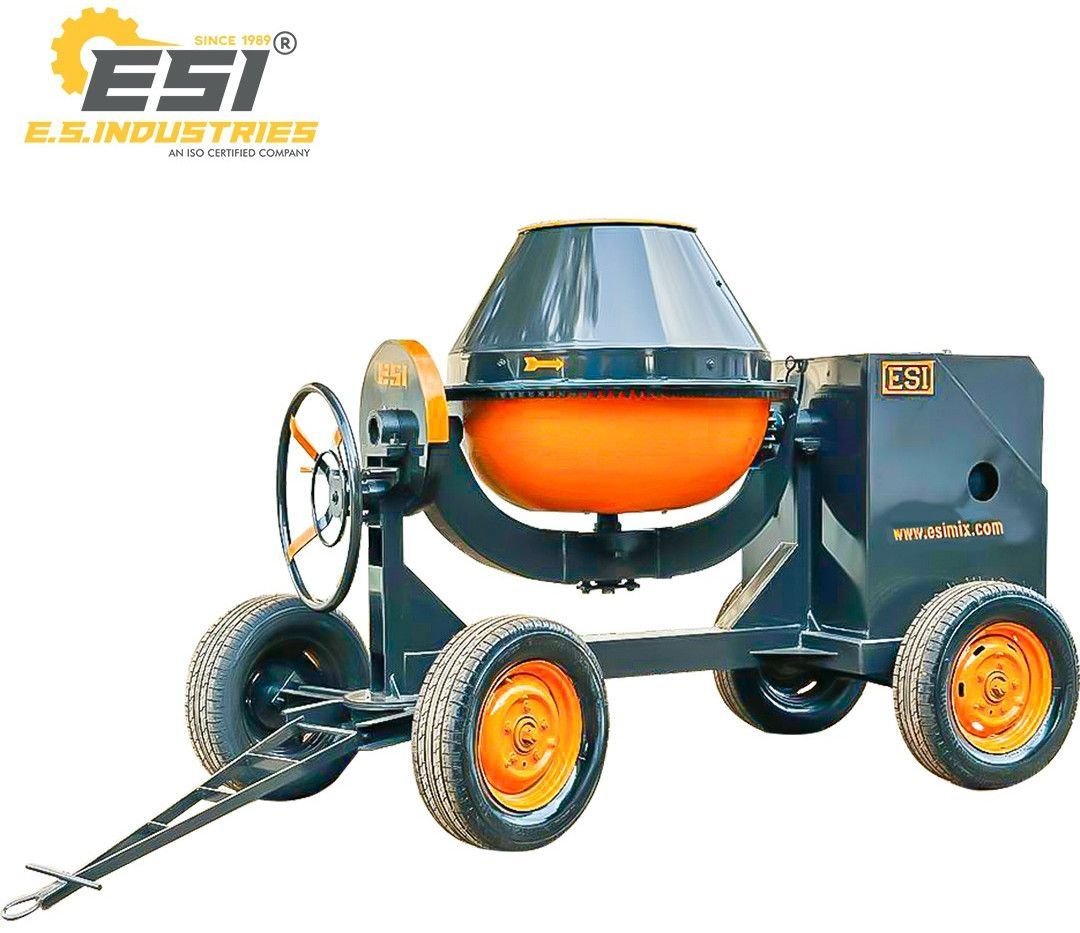

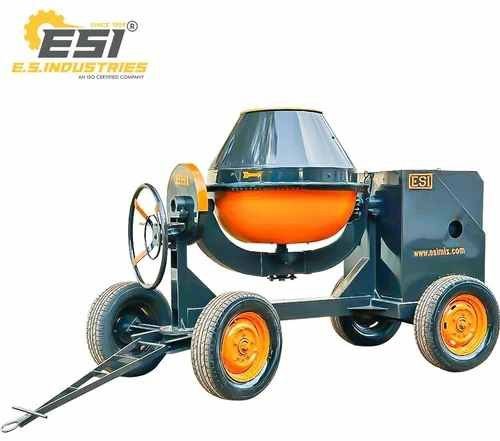

Manual mixer machine

Portable Concrete Mixer designed for

Small to Medium construction projects.

where Power is Limited

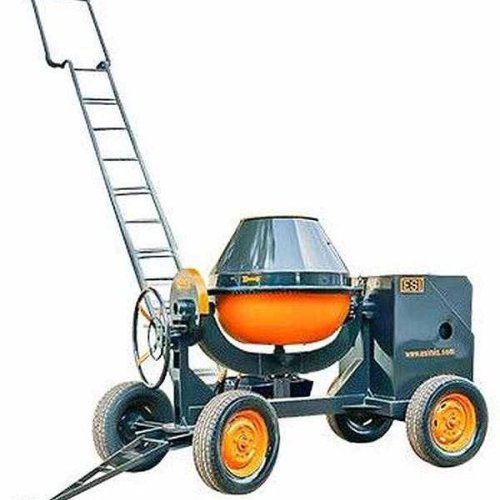

1 Bag Clutch Multimixer

Multimixer leverages unique functionality with customer needs. Effective transmission and minimum maintenance. Tilting drum mixer and lifting clutch handle can be operated single operator. better performance, reduced labor cost, portability, customized with mixing capacity of drum mixers varied to 5 CFT to 10 CFT, tire wheels tractor/jeep model pneumatic wheels ;specialized frame structure for ultimate functioning

Mixers Specifications Key Feature

Capacity : 1 Bag | 10/7 CFT | 300/200 liters

Power Type And Brand : Engine / Motor

Power Capacity : 6HP / 5HP

Blade Count : 4

Steering Type : Chain / rope

Made : MS

Hopper : Yes

Hopper Type : Clutch

Weigh Batcher : No

Lift Specification

Hoist : Attached

Hoist Lighting Weight Capacity : half Ton

Hoist Lifting Height Capacity : 100f

Rope : Steel

Rope Thickness : 12mm

Wheel Count : 4

Tire Material : Customizable  to Jeep| Ambassador | Tractor | Innova Tires

Tow Bar :  Yes

Portability: Heavy

Mixing Features

Batch capacity Unmixed : 10 CFT | 300 liters

Batch capacity Mixed : 7 CFT  | 200 liters

Mixing Duration : 3 Minutes / Concrete Mixing

Concrete Coverage : 2 Cubic meters / Hour

Speed : 18-20 Rotation / minute

Sizes And Dimensions

Cone Size and material : 4mm / 16G MS Sheet

Drum Size : 1181mm dia H15 1/4

Machine Weight :

Machine Dimension : L 8.5² W5.5² H7²

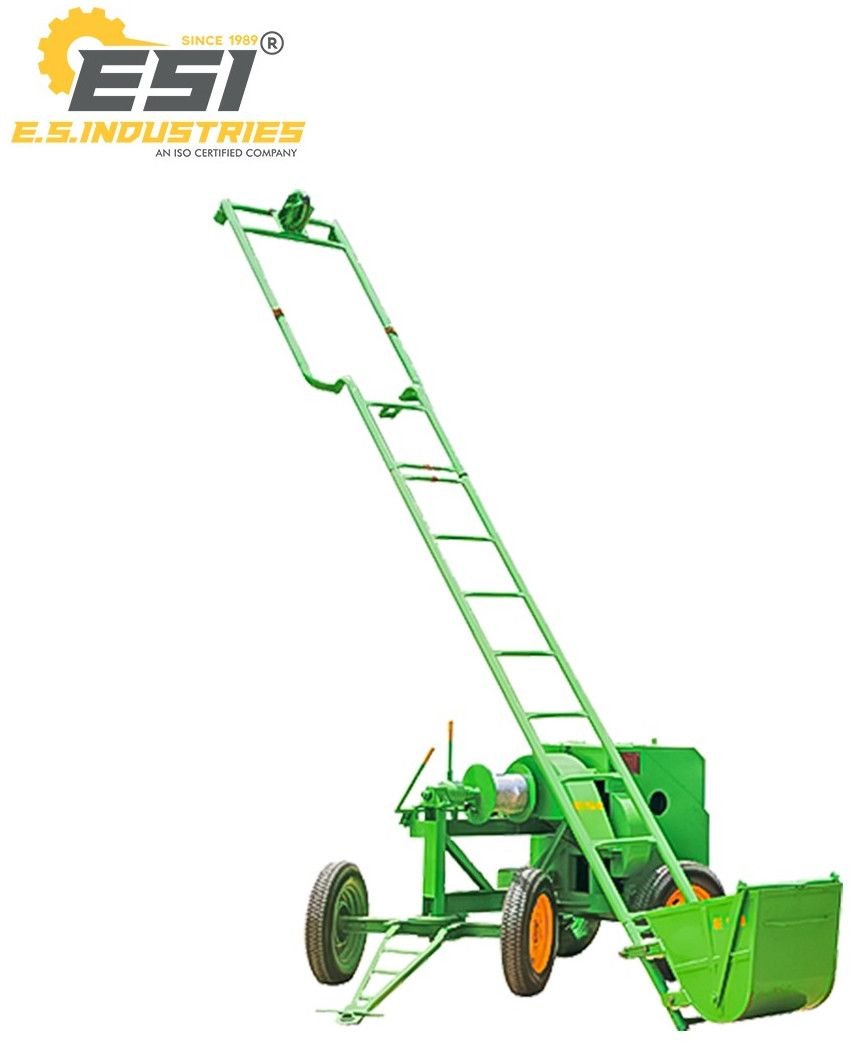

Bag Multimixer

Multimixer leverages unique functionality with customer needs. Effective transmission and minimum maintenance. Tilting drum mixer and lifting clutch handle can be operated single operator. better performance, reduced labor cost, portability, customized with mixing capacity of drum mixers varied to 5 CFT to 10 CFT, tire wheels tractor/jeep model pneumatic wheels ;specialized frame structure for ultimate functioning

Mixers Specifications Key Feature

Capacity : 1 Bag | 10/7 CFT | 300/200 liters

Power Type And Brand : Engine / Motor

Power Capacity : 6HP / 5HP

Blade Count : 4

Steering Type : Chain / rope

Made : MS

Hopper : No

Hopper Type : Nil

Weigh Batcher : No

Lift Specification

Hoist : Attached

Hoist Lighting Weight Capacity : half Ton

Hoist Lifting Height Capacity : 100 F

Rope : Steel

Rope Thickness : 12mm

Wheel Count : 4

Tire Material : Customizable to Jeep| Ambassador | Tractor | Innova Tires

Tow Bar :Yes

Portability: Heavy

Mixing Features

Batch capacity Unmixed : 10 CFT | 300 liters

Batch capacity Mixed : 7 CFT | 200 liters

Mixing Duration : 3 Minutes / Concrete Mixing

Concrete Coverage : 2 Cubic meters / Hour

Speed : 18-20 Rotation / minute

Sizes And Dimensions

Cone Size and material : 4mm / 16G MS Sheet

Drum Size :1181mm dia H15 1/4

Machine Weight :

Machine Dimension: L8² W4 1/4  H 6

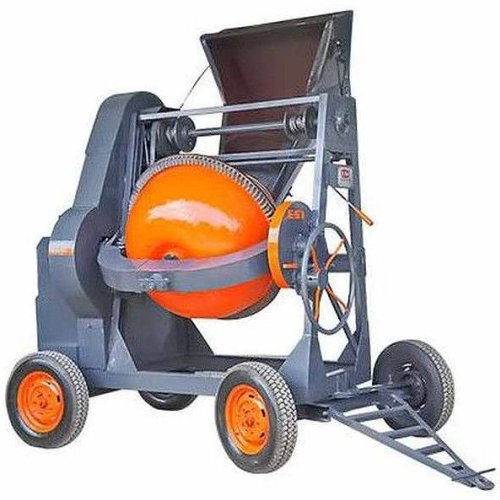

One Bag Hydraulic Hopper

One bag concrete mixer with hopper operated by hydraulic system. Specialized design power steering model, digital weigh batch system, hydraulic attached lift
