0.1 - 1.50 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Concrete Mixing |
| Material | MS |
| Brand Name | E S Industries |
| Click to view more | |
Product Details
Condition
New
Drum Size
1181mm Dia H15 1/4
Capacity
1 Bag | 10/7 CFT | 300/200 Liters
Power Type And Brand
Motor
Power Capacity
5HP
Hopper Type
Clutch
Rope Thickness
12mm
Wheel Count
4
Concrete Coverage
2 Cubic Meters / Hour
Machine Dimension
L 8.5² W5.5² H7²

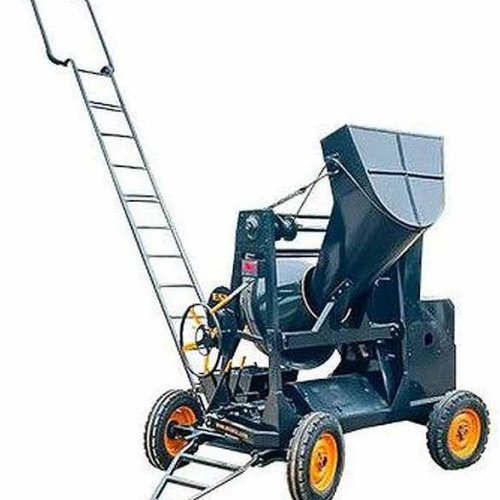

1 Bag Clutch Multimixer
Multimixer leverages unique functionality with customer needs. Effective transmission and minimum maintenance. Tilting drum mixer and lifting clutch handle can be operated single operator. better performance, reduced labor cost, portability, customized with mixing capacity of drum mixers varied to 5 CFT to 10 CFT, tire wheels tractor/jeep model pneumatic wheels ;specialized frame structure for ultimate functioning
Mixers Specifications Key Feature
Capacity : 1 Bag | 10/7 CFT | 300/200 liters
Power Type And Brand : Engine / Motor
Power Capacity : 6HP / 5HP
Blade Count : 4
Steering Type : Chain / rope
Made : MS
Hopper : Yes
Hopper Type : Clutch
Weigh Batcher : No
Lift Specification
Hoist : Attached
Hoist Lighting Weight Capacity : half Ton
Hoist Lifting Height Capacity : 100f
Rope : Steel
Rope Thickness : 12mm
Wheel Count : 4
Tire Material : Customizable to Jeep| Ambassador | Tractor | Innova Tires
Tow Bar : Yes
Portability: Heavy
Mixing Features
Batch capacity Unmixed : 10 CFT | 300 liters
Batch capacity Mixed : 7 CFT | 200 liters
Mixing Duration : 3 Minutes / Concrete Mixing
Concrete Coverage : 2 Cubic meters / Hour
Speed : 18-20 Rotation / minute
Sizes And Dimensions
Cone Size and material : 4mm / 16G MS Sheet
Drum Size : 1181mm dia H15 1/4
Machine Weight :
Machine Dimension : L 8.5² W5.5² H7²
