esimix@ymail.com - GST NO. : 33AAIFE6175G1ZF
- Send Email
1.50 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Weight | 107 KG |
| Frequency | 50-60 Hz |
| Phase | Single Phase & Three Phase |
| Click to view more | |
Product Details
Brand Name
E S Industries
Color
Red
Round Bar Diameter
04-20 Mm
Threaded Steel Diameter
04-16 Mm
Diameter Of Working Disc
200mm
Adjustable Bending Speed
25-30 Times / Min
Automation Grade
Automatic
Motor Power
3 KW
Motor Voltage
415V / 380V
Motor RPM
1440r/min
Dimensions
800×550×800mm

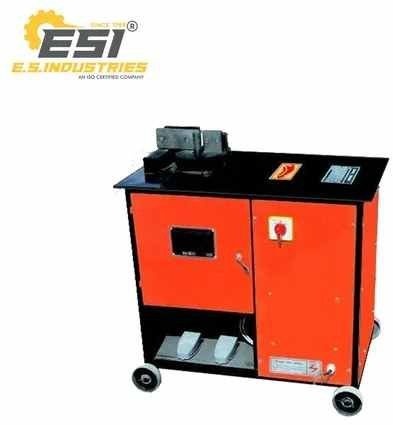

Stirrup Bending Machine
The stirrups are bent into a hook shape mainly to keep them in place. Stirrups are rectangular loops made from plain round bar, which have the purpose to confine or restrain the primary reinforcing bars and prevent shear failure. Shear failure is where the structure fails parallel to the direction of force.
Looking for "Stirrup Bending Machine" ?
Piece
